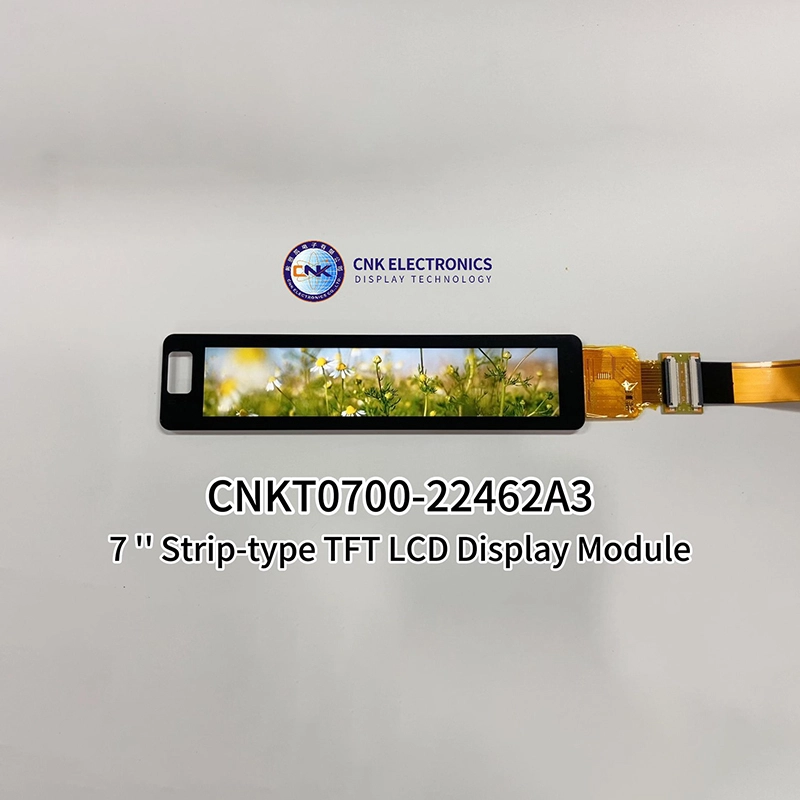

CNK 7 inch Bar-type TFT LCD Display Module
Model:CNKT0700-22462A3
Application: Medical, Smart Home, Energy Storage, etc
Features: 1)High Resolution 2)Optional Tp 3)Optional HMl Solution 4)Wide temperature
1、Resolution:280(RGB)x1424
2、Active Area:170.88mm x33.60 mm
3、Display Type: IPS
4、Viewing Direction: all
5、 Touch Screen: CTP
6、Luminance :450cd/m2
7、LCD Operating Voltage: 5V
8、OperatingTemperature:-20°C~70°C
9、Connector: MIPI
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Specifications
| Resolution | 280 (RGB) x 1424 | Active Area | 170.88mm x33.60 mm |
| Display Type | IPS | Touch Screen | CTP |
| Luminance | 450cd/m2 | LCD 0perating Voltage | 5V |
| 0perating Teperature | -20°C~70°C | Storage Teperature | -30°C~80°C |
| Viewing Direction | all | Display Mode | Normally Black |
| Backlight | White LED | Connector | MIPI |
| IC | ST72566 | RoHS Compliant | Yes |
Product Showcase
微信图片_20240607114150 (2)
微信图片_20240605180911 (3)
微信图片_20240607114144 (2)
微信图片_20240605181049 (2)
微信图片_20240607114150 (3)
Applications
Medical Care
Our in-house designers and engineers have produced countless great designs for customers from different industries
Energy Storage
Our in-house designers and engineers have produced countless great designs for customers from different industries
Smart Home
FAQ
1
Can we customize product? What cost will be included?
The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
2
Payment Terms?
Credit Card and T/T paid in advance for mass production.
3
What certification could provide ?
Products by RoHS, CE, SGS ISO certification.
4
Can you provide product drawing?
Our company can provide product related information at least, we also can provide technology support to our client.
5
What is the minimum order quantity?
All our products have MOQ requirement according to the display size unless we have stock for it.
6
What is the products application?
The products can be widely applied to the fields of HMI, handheld terminals, household medical
7
How can i find the right product?
Please send us your requirements, we will recommend our standard products; if it’s not fit, we will do the necessary adjustment & customization.
8
Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
9
What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
