CNK Monochrome LCD display 320 x 240 CNK320240-22199A1

Features：

1）high stability

2）Low power consumption

3）Wide temperature

Specifications

Resolution	320 x 240	Active Area	115.17(W)×88.37(H) mm
Outline Dimension	160(W )×109(H)×13.5(T)mm	Display Mode	STN,Negative(Blue),Transmissive
LCD 0perating Voltage	5V	0perating Temperature	-20°C~70°C
Storage Temperature	-30°C~80°C	Viewing Direction	6：00
Connector	8080	IC	UCi8835C
Backlight	LED/White	RoHS Compliant	Yes

Product Showcase

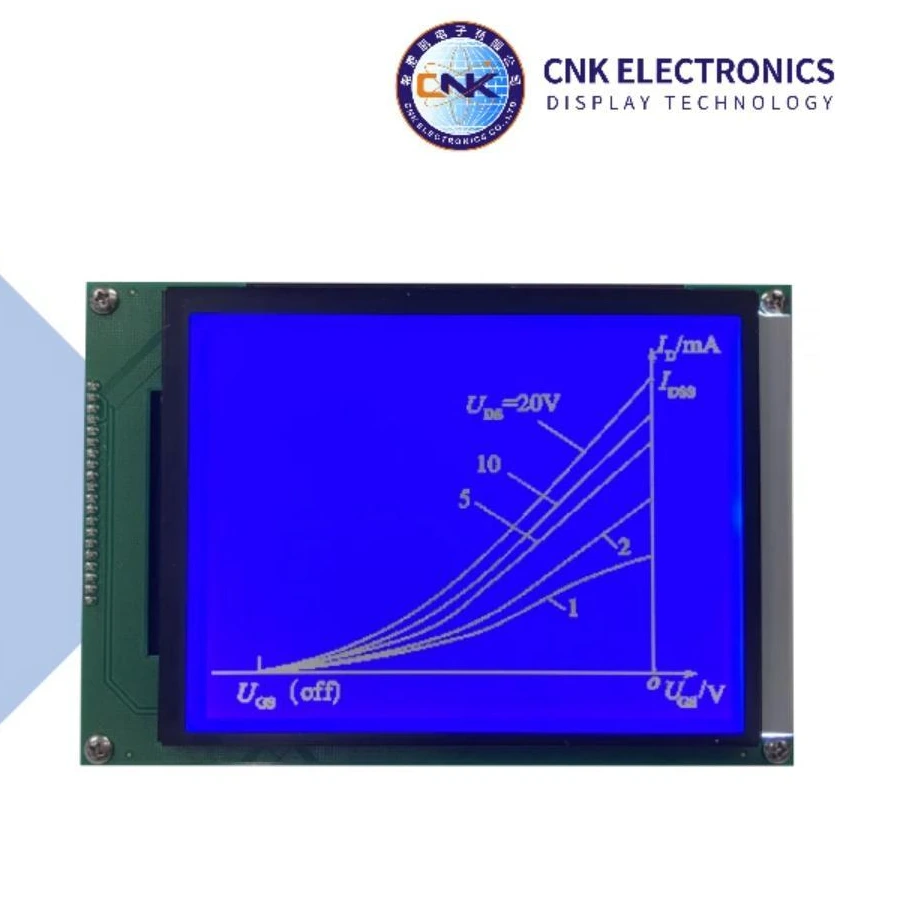

CNK320240-22199A1封面

微信图片_20240423173725~1

微信图片_20240423173734

Applications

Industrial control equipment

Our in-house designers and engineers have produced countless great designs for customers from different industries

medical equipment

Our in-house designers and engineers have produced countless great designs for customers from different industries

power instruments, etc

FAQ

Can we customize product? What cost will be included?

The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.

Payment Terms?

Credit Card and T/T paid in advance for mass production.

What certification could provide ?

Products by RoHS, CE, SGS ISO certification.

Can you provide product drawing?

Our company can provide product related information at least, we also can provide technology support to our client.

What is the minimum order quantity?

All our products have MOQ requirement according to the display size unless we have stock for it.

What is the products application?

The products can be widely applied to the fields of HMI, handheld terminals, household medical

How can i find the right product?

Please send us your requirements, we will recommend our standard products; if it’s not fit, we will do the necessary adjustment & customization.

Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

What’s the lead time?

Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
