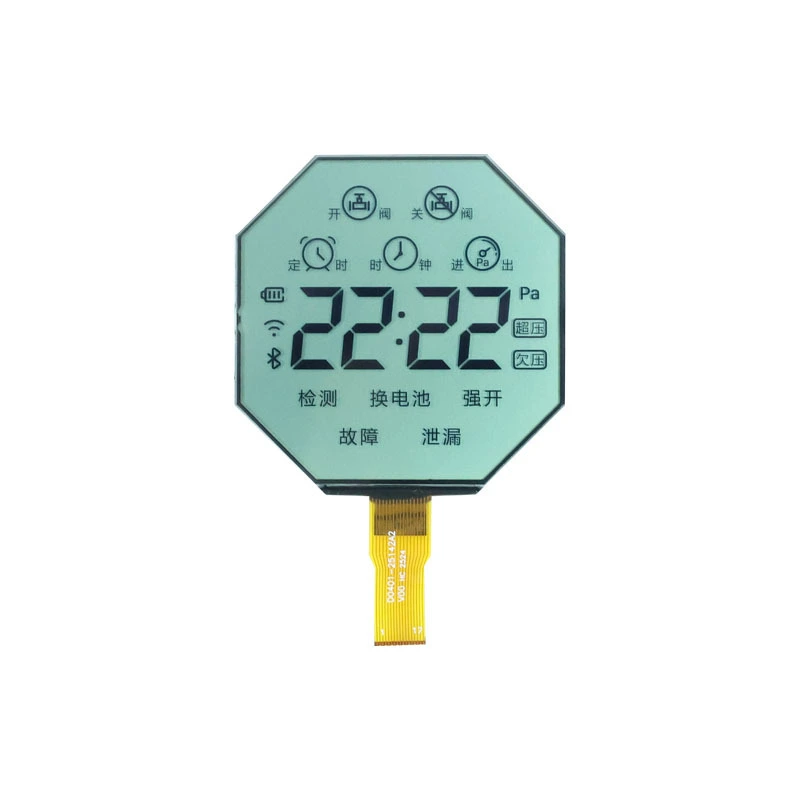

As a leading monochrome display manufacturer in China, CNK Electronics Co., Ltd. has launched a new industrial-grade customized product—the Octagon Segment Monochrome Display (Model CNKD0401-25142A2).

Core Performance Advantages

High-Precision HTN Display: Featuring a positive reflective LCD mode and a 12 o’clock viewing direction design, it maintains ultra-high contrast even in strong light.

Extreme Environment Adaptability: Operating temperatures range from 0~50°C, storage temperatures span -60~10°C, and it supports high-temperature/high-humidity storage at 50°C/90%RH.

Compact Modular Design: The ultra-thin 58×60×2.8mm body integrates a large 55×55mm viewing area. The 1/4 Duty + 1/3 Bias driving scheme combined with 3V low power consumption significantly extends device battery life.

 This octagon segment display supports flexible customization in size, interface, temperature range, and more, and has been successfully applied in Water and electricity meters.

    oops...!

    no product data.

    Go to homepage

    Specifications

    Type

    HTN

    Viewing Area(V.A.)(L*W)

    55(L)* 55(W)mm

    Mode

    POSITIVE REFLECTIVE

    Module Size(L*W*H)

    58(L)*60(W)*2.8(H)mm

    Viewing Direction

    12 O’clock

    High Temperature & High Humidity Storage

    50°C/ 90%RH

    VOP

    3V

    temp. Operating

    0~50°C

    Driving Scheme

    1/4 Duty, 1/3 Bias

    temp. Storage

    10 ~ -60°

    Design drawings

    CNKD0401-25142A2-SPEC_14
    CNKD0401-25142A2-SPEC_14
    CNKD0401-25142A2-SPEC_15
    CNKD0401-25142A2-SPEC_15
    CNKD0401-25142A2-SPEC_16
    CNKD0401-25142A2-SPEC_16
    CNKD0401-25142A2-SPEC_17
    CNKD0401-25142A2-SPEC_17

    Applications

    outdoor power supply
    Industrial Equipment
    energy storage
    Two-wheeler
    工业水电表1
    Water and electricity meters
