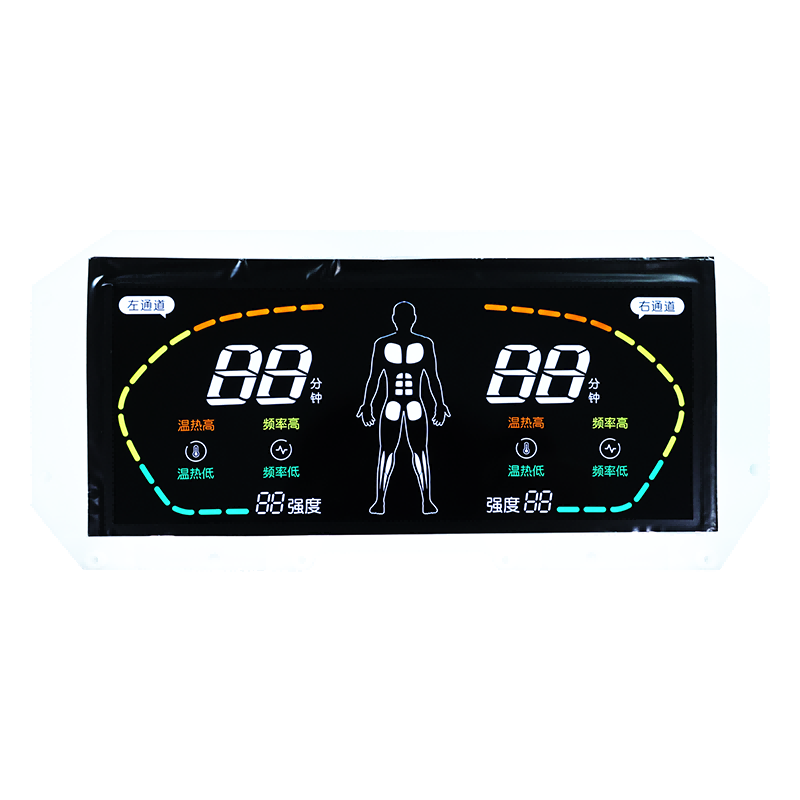

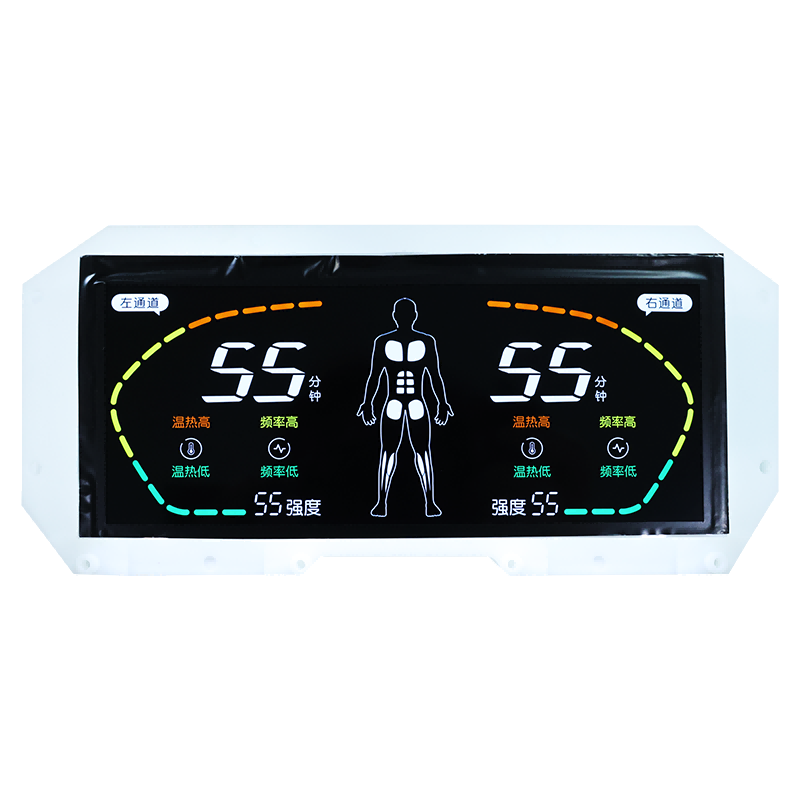

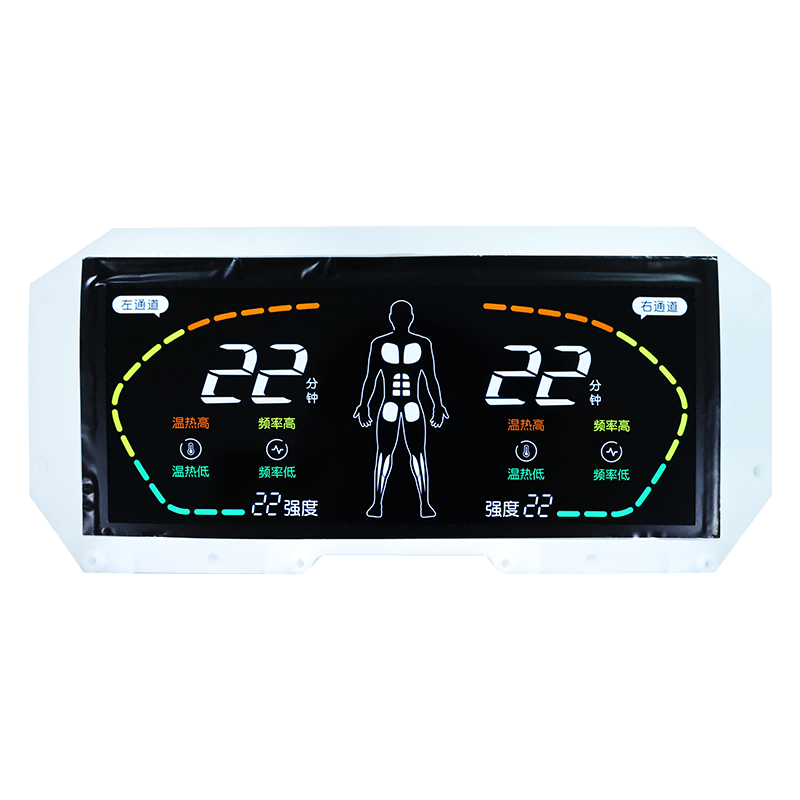

VA segment code display module
VA segment code display module, CNKD0405-23589A1, this product is mainly used in medical health. The display content includes temperature, frequency, intensity, blood pressure, blood lipids, blood sugar values, etc. It can be customized according to customer needs and other functions can be added. The usable working temperature is -20+70℃, and the viewing angle is at 6 o'clock.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Specifications
| Resolution |
broken code |
Dimensions |
160mm*91.2mm |
| Display Type | VA |
Operating temperature |
-20+70℃ |
|
Storage temperature |
-30+80℃ |
Driver IC |
RW1028G |
|
Viewing angle |
6:00 |
Interface |
12C |
|
Backlight |
white light |
Display Mode | Normally Black |
| Backlight | White LED |
ROHS |
compliant |
DESIGN DRAWING
e6234bbed0dc55db0f892a09afbef75
Applications
Medical Devices
Medical Devices
Medical Devices
FAQ
1
Can we customize product? What cost will be included?
The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
2
Payment Terms?
Credit Card and T/T paid in advance for mass production.
3
What certification could provide ?
Products by RoHS, CE, SGS ISO certification.
4
Can you provide product drawing?
Our company can provide product related information at least, we also can provide technology support to our client.
5
What is the minimum order quantity?
All our products have MOQ requirement according to the display size unless we have stock for it.
6
What is the products application?
The products can be widely applied to the fields of HMI, handheld terminals, household medical
7
How can i find the right product?
Please send us your requirements, we will recommend our standard products; if it’s not fit, we will do the necessary adjustment & customization.
8
Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
9
What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
